EUmark Set 07 — Compact Serial Number Marking System with CD410 Printer

EUmark Set 07 — compact system for serial number marking

Set 07 exists for one situation: every part carries a different number, and none of them needs deep etch. Serialised production, asset tagging, lot and date coding, unique device identifiers — hundreds of stencils, each used once. That work needs printing capacity and number-generating software, not a machine specified for a depth it will never produce.

What makes this system different

CD410 stencil printer	Included, with stencil design software
Sequential serial numbers	Auto-incremented across a run
QR codes and barcodes	Generated in software
Stencil tape supplied	60 mm × 108 m
Marking mode	Black oxide marking

A 108 m roll represents thousands of printed stencils at a typical length — built for production serialisation, not occasional marking. The 58 mm printer in Set 02, 03 and 06 handles text and fine lines well but should not be used for QR codes or barcodes; Set 07 and SUPER SET 04 are the two configurations built for machine-readable marking.

What it does not do

Set 07 is built on the compact machine — black oxide marking only, no deep etch. Where a drawing specifies etch depth, SUPER SET 04 gives the full machine, both marking modes, and full 200 ml electrolyte bottles.

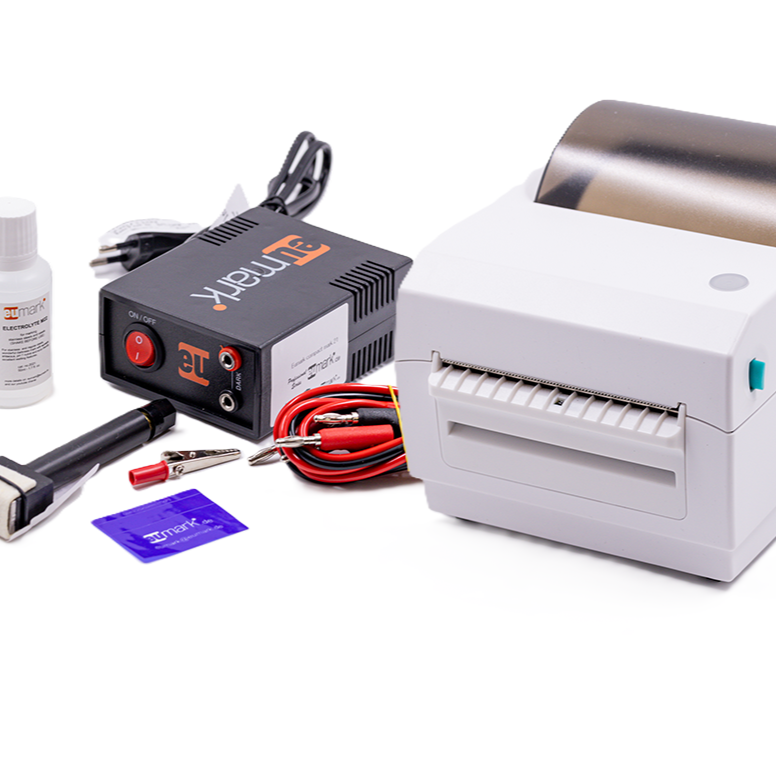

Kit contents

• EUmark compact marking unit, 110 V / 220 V, with power and marking cables

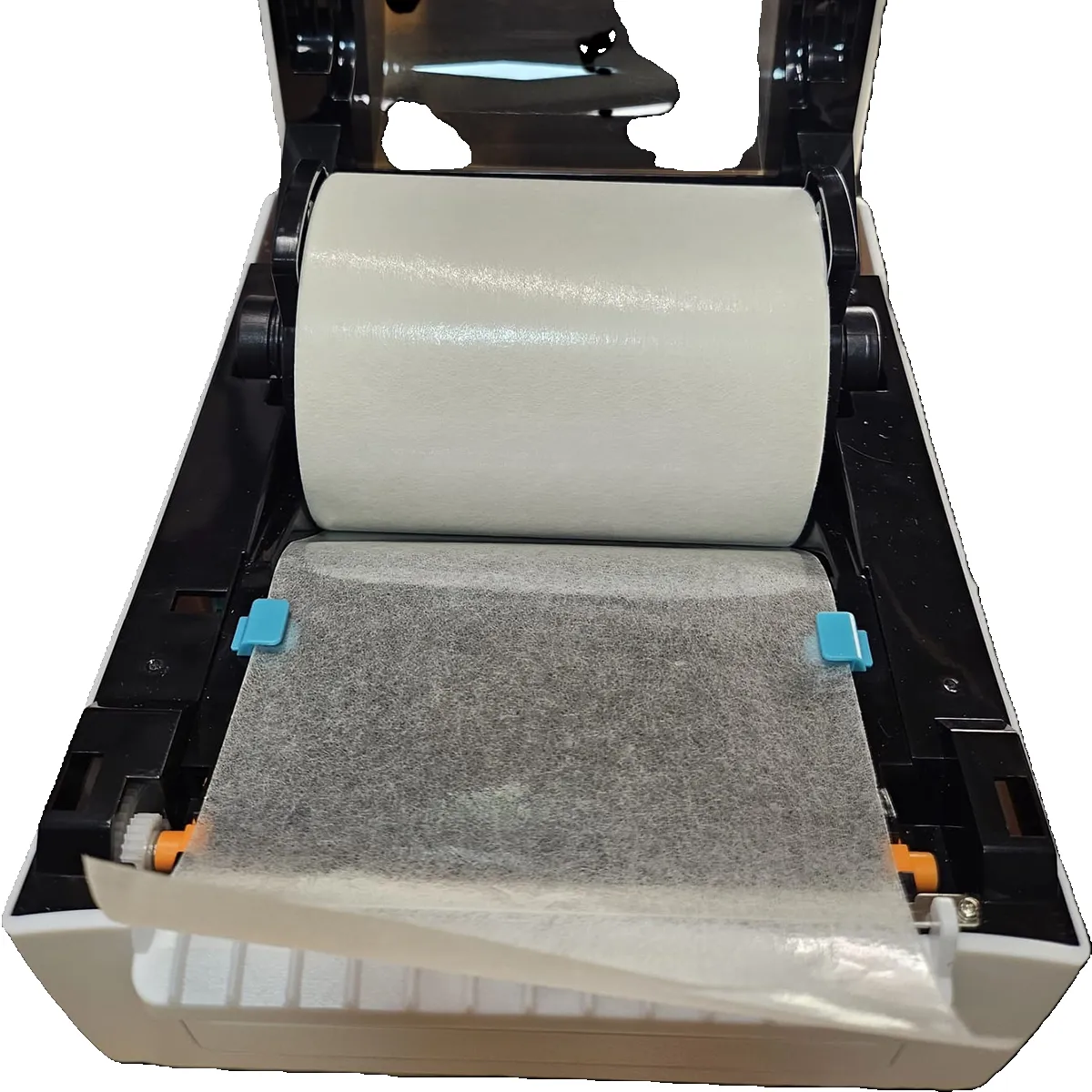

• CD410 stencil printer with serial number, QR code and barcode software

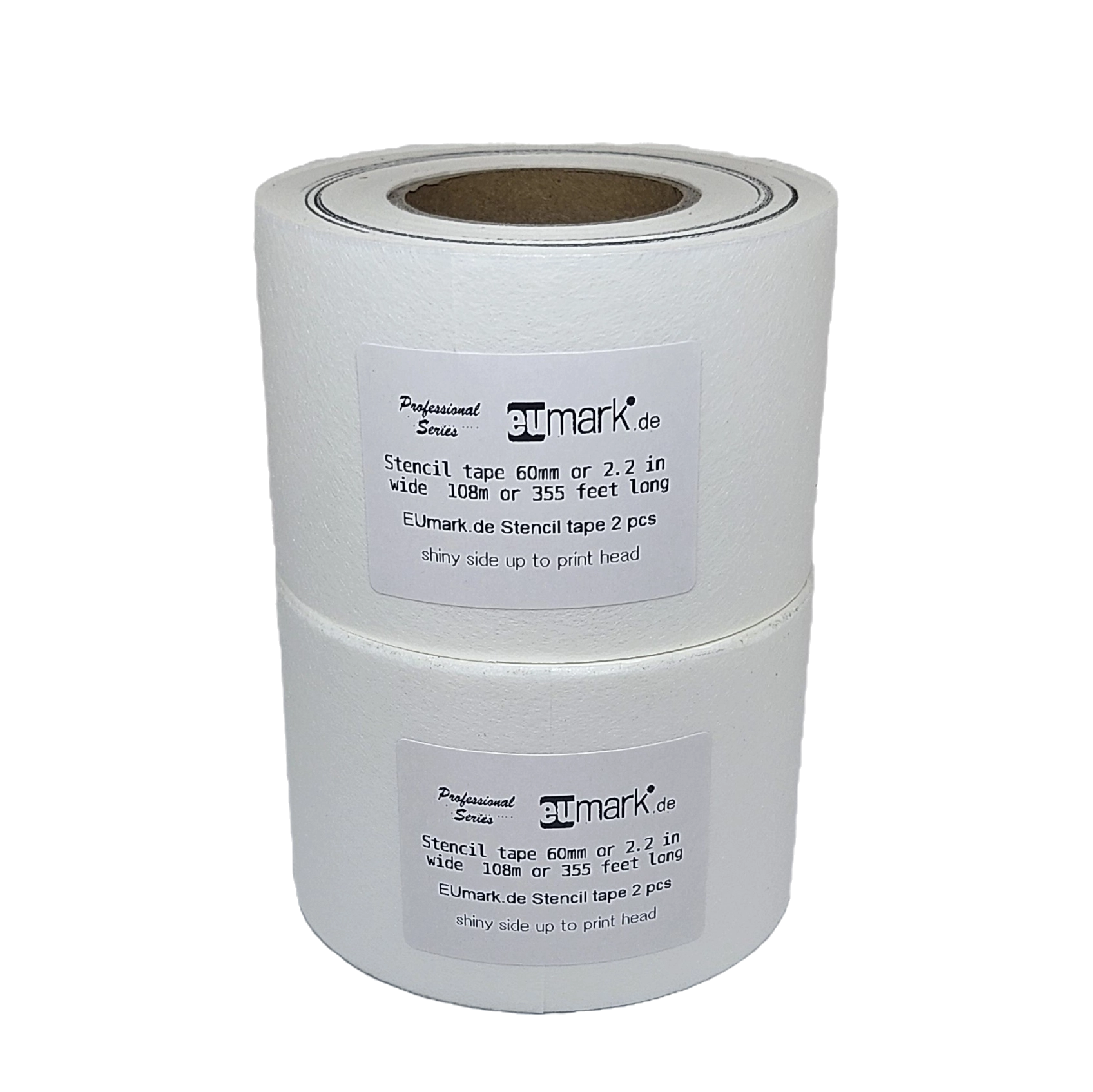

• Stencil tape, 60 mm × 108 m
• Hand stamp, electrolyte sample

Materials — including aluminium

Any conductive metal is compatible. Aluminium needs a different approach, forming a non-conductive oxide layer almost instantly in air that gives a grey rather than dark result — magnesium- and silicon-bearing alloys complicate this further. Confirm the alloy with us before ordering.

Electrolyte and documentation

Set 07 ships with an electrolyte sample. Full 500 ml bottles of M21, M22 and M23 are available separately — each with a safety data sheet, required by most quality systems for incoming inspection and the audit file. One bottle covers up to 20,000 marks. Trial marking on your own material is a required step before production use; send a coupon and we run the first one for you.

Specifications

Process	Electrochemical marking
Marking mode	Black oxide marking
Stencil printer	CD410 — serial numbers, QR codes, barcodes
Stencil tape supplied	60 mm × 108 m
Mains supply	110 V / 220 V AC, ready for EU, UK and US
Output voltage	10–15 V
Maximum output current	15 A
Power consumption	up to 150 W at peak
Marking cycle	2–5 seconds per mark
Warranty	24 months
Manufacture	EUmark, Serbia — since 1999

Delivery within the EU and UK

Ships from Serbia under SAA preferential origin — EUR.1 or invoice declaration with every shipment.

Before you order

Send the material, mark content and volume. We confirm whether Set 07 is the right fit, or whether SUPER SET 04 serves you better if depth is ever a possibility. eumark@eumark.de
